Showcase Home » Arctic Cat » Prowler XTZ 1000 Baja
Model Quick Search

$13,157.00

2009 Arctic Cat Prowler XTZ 1000 Baja
Request a Quote Financing Calculator Request a Brochure Financing Form

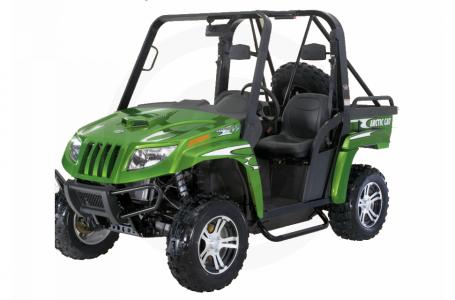

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Draw a Line in the Sand. Then Cross it.


Ride into your dealer. Ride out on the same machine that won first place at the Baja 1000: The Prowler XTZ 1000 Baja. With stylish and durable Arctic Green Metallic Automotive-Style paint, this beast is just as dominating to look at as it is to ride. And speaking of riding it, you'll love the front cargo space, bumper, spaqre tire with baja box bars, monotube gas-charged shocks, and the tip-roarin' 951 cc engine. Not to mention a ton of other awesome features, so if you want to ride a winner, get the Prowler XTZ 1000 Baja.

  • Cargo Box Rails - Adds capacity to the Prowler box and protects your box sides with rugged, powder-coated steel rails.
  • Monotube Gas-Charged shocks - Better performance at higher speeds.
  • Front Bumper - If you're into aggressive racing, you don't want to be without one. Made from tough brushed aluminum.
  • Front Cargo Space - Now there's even more room for all your gear. Plus, the cargo space's durable cover keeps it all safe from the elements.
  • Spare Tire with Baja Box Bars - Gives your Prowler even more attitude with these Baja Box Bars. Made from strong, heavy-duty 1-in. powder-coated bars. And if you ride like we think you will, you might need a spare tire. Thanks to the rattle-free design, you won't even know it's there until you need it.
  • Center Console - Just another reminder that you're riding in a luxury vehicle. Cup holders and extra space for even more of your stuff.
  • Foot Rails - Specifically engineered to be the strongest, most durable bars available, these nerf bars give riders added safety and coverage in the footrest area.
Specifications
  • Displacement: 951 cc
  • Engine Type: V-Twin, SOHC, 4-Stroke, 4-Valve
  • Bore x Stroke: 92 x 71.6 mm
  • Cooling System: Liquid w/Fan
  • Transmission: Automatic CVT w/EBS, Hi/Lo Range & Reverse
  • Drive System: 2/4 WD + Electric Diff Lock
  • Overall Width: 60 in. (152.4 cm)
  • Overall Height: 75 in. (190.5 cm)
  • Overall Length: 118.5 in. (301 cm)
  • Wheelbase: 75 in. (190.6 cm)
  • Front Travel: 10 in. (25.4 cm)
  • Rear Travel: 10 in. (25.4 cm)
  • Ground Clearance: 10 in. (25.4 cm)
  • Front Suspension: Double A-Arm
  • Rear Suspension: Double A-Arm
  • Front Brakes: Hydraulic Disc
  • Rear Service Brake: Hydraulic Disc
  • Front Tires: 26x9-14
  • Rear Tires: 26x11-14
  • Max Fuel Capacity: 8.2 gal (30 l)
  • Rear Box Capacity: 600 lbs. (272 kg)
  • Under-Hood Capacity: 25 lbs. (11.4 kg)
  • Towing Capacity: 1500 lbs. (680.4 kg)
  • Alternator: 25 amps
  • Speedometer: Analog
  • Odometer: Digital
  • Dry Weight: 1243.3 lbs. (563.7 kg)
  • Minimum Operator Age: 16
  • Available Colors: Arctic Green Metallic Paint

Specifications

Engine
Engine Type V-Twin, SOHC, 4-Stroke, 4-Valve
Displacement 951 cc
Bore and Stroke 92 x 71.6 mm
Cooling Liquid w/Fan
Chassis
Front Suspension Double A-Arm
Front Brakes Hydraulic Disc
Front Tire 26x9-14
Rear Suspension Double A-Arm
Rear Brakes Hydraulic Disc
Rear Tire 26x11-14
Dimensions
Dry Weight 1243.3 lbs. (563.7 kg)
Front Travel 10 in. (25.4 cm)
Fuel Capacity 8.2 gal (30 l)
Rear Travel 10 in. (25.4 cm)
Wheelbase 75 in. (190.6 cm)
Ground Clearance 10 in. (25.4 cm)
Box Capacity 600 lbs. (272 kg)
Towing Capacity 1500 lbs. (680.4 kg)
Transmission
Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
Drive System 2/4 WD + Electric Diff Lock
General
Speedometer Analog
Odometer Digital
Colors Arctic Green Metallic Paint

Compare Models

 Print








Year 2009
Manufacturer Arctic Cat
Model Prowler XTZ 1000 Baja
Style Side x Side
Chassis
Front Suspension Double A-Arm
Front Brakes Hydraulic Disc
Front Tire 26x9-14
Rear Suspension Double A-Arm
Rear Brakes Hydraulic Disc
Rear Tire 26x11-14
Dimensions
Dry Weight 1243.3 lbs. (563.7 kg)
Front Travel 10 in. (25.4 cm)
Fuel Capacity 8.2 gal (30 l)
Rear Travel 10 in. (25.4 cm)
Wheelbase 75 in. (190.6 cm)
Ground Clearance 10 in. (25.4 cm)
Box Capacity 600 lbs. (272 kg)
Rack Capacity
Towing Capacity 1500 lbs. (680.4 kg)
Engine
Engine Type V-Twin, SOHC, 4-Stroke, 4-Valve
Displacement 951 cc
Bore and Stroke 92 x 71.6 mm
Cooling Liquid w/Fan
Compression Ratio
Fuel System
Ignition
General
Speedometer Analog
Tachometer
Odometer Digital
Colors Arctic Green Metallic Paint
Warranty
Transmission
Transmission Automatic CVT w/EBS, Hi/Lo Range & Reverse
Drive System 2/4 WD + Electric Diff Lock
